When wiring your marine electrical system, proper cable sizing is essential. Incorrect sizing can create dangerous conditions and limit system effectiveness. We’ll guide you through quick and easy ways to ensure your cables are the correct size.
How to Determine What Size Cable Your Marine Electrical System Needs

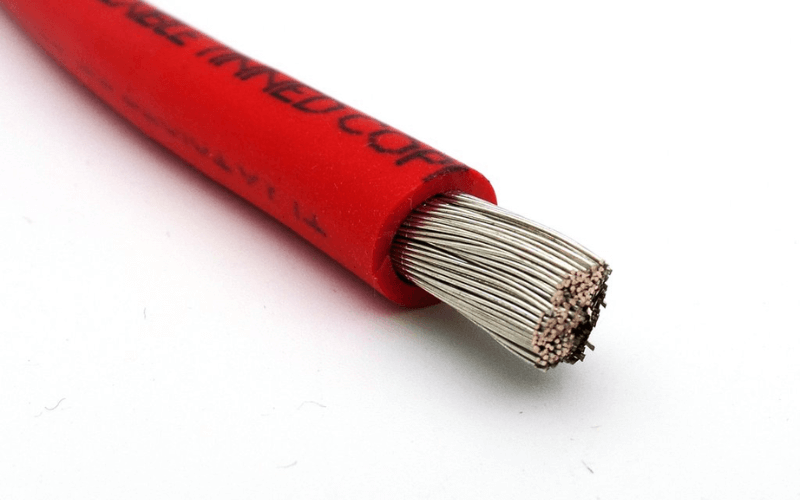

Wiring is a crucial part of any electrical system, carrying current between components. Proper wire sizing ensures enough current reaches your loads, while wires that are too small can limit system performance and create dangerous conditions.
For the same voltage system, wire size can vary. The required wire gauge depends on the system’s amperage and the circuit’s total distance.
To get amps, divide the load’s watts by system voltage (amps = watts/volts). For example, a 3, 000-watt inverter on a 12V system draws 250 amps (3, 000 ÷ 12 = 250).
Next, measure your circuit’s total length – the distance between batteries and loads. Use this length and current in a reference table to select the appropriate wire size.
Additional Considerations When Sizing Wires for Your Sailboat Electrical System
Voltage drop is the reduction in voltage between a circuit’s source and load, caused by wire resistance.
ABYC standards allow up to 10% voltage drop for non-critical systems like lights, but only 3% for critical ones like bilge pumps or navigation. Using larger cables reduces voltage drop by lowering resistance.
A Simple Solution to Size Your Cables
These days, apps make figuring out wire size incredibly easy – you simply enter your information and receive a recommendation instantly.
Warrior Sailing’s Connor Smith uses the Blue Sea Systems Circuit Wizard to quickly select the right wire size for his boat’s electrical setup.
The app prompts him to enter: system voltage, load current (amps), conductor length (full circuit), allowable voltage drop percentage, wire insulation temperature rating (usually 105°C for quality wires), whether the system is in the engine room, number of bundled wires, average load duration, and if the system terminates at a fuse.
He then hits calculate and receives a wire sizing recommendation. Apps like this ensure your cables are properly sized by considering many variables, helping your system operate safely and efficiently.
