Power is used in homes, RVs, boats, and more, whether from the grid or solar panels. Understanding amps is essential because they indicate electrical current flow. For off-grid power or electrical system design, knowing amps is crucial for a safe setup with properly sized wires. Let’s explore amps and their significance!
What Are Amps In Electricity?
“Amps” (A) is short for “ampere“, a standard unit of electrical current. An amp signifies one unit of constant current, while “amperage” refers to the current’s strength in amps.
If electricity were like water in a hose, amps would represent the water, and electrical current would be the flow rate through the hose.
Amps Vs. Volts, Ohms, and Watts
To understand amps, we must consider volts, ohms, and watts. These units work together to meet our electrical needs.
Volts
A volt (V) measures electrical potential, indicating the difference between two points in a circuit. Using a hose analogy, volts resemble water pressure pushing electrons through a conductor.
While voltage shows potential movement, amps measure actual flow rate; high voltage equates to high pressure.
Ohms
Ohms measure resistance, similar to the size of a hose. In our water-flow analogy, increasing resistance (ohms) is like reducing the hose size, which decreases water flow (current, measured in amps) driven by pressure (voltage).
A large hose represents a low-resistance wire that allows high current flow, while a smaller hose restricts flow like a high-resistance wire does.
Watts

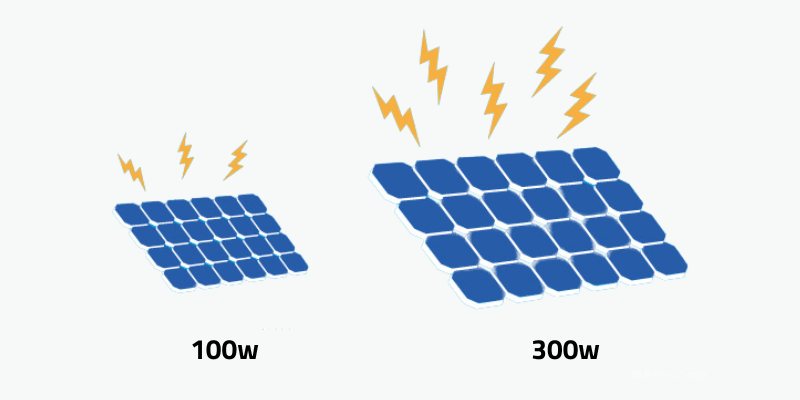

А watt (W) measures power, defined as one joule of energy used per second, representing the rate of electrical energy transfer in a circuit. Amps measure the flow rate of energy, volts measure potential energy, and watts are the product of these two.
Using a hose analogy, power increases by boosting water flow or pressure. Similarly, in an electrical system, power rises with higher current (amperage) or voltage.
How to Measure Amps?
To measure amps, we use an ammeter, which measures electric current in amperes (amps). It can measure both direct current (DC) and alternating current (AC). Ammeters are often displayed in a circle with the letter “А” inside.
How An Ammeter Works
An ammeter measures current through a component and must be connected in series, meaning one after another.
When to Use an Ammeter?
Electricians, engineers, and electrical enthusiasts use ammeters to measure current flow in circuits. Portable digital multimeters measure voltage (Volts), current (Amps), and resistance (Ohms) to verify circuits.
Available as clamp-on or probe meters at various price points, ammeters are essential for mobile power systems, allowing RVers and boaters to track battery current, remaining amp-hours, charge levels, and charging duration.
There are two main types of ammeters:
Hall Sensor (Amp Clamp)
Hall sensors measure amps without breaking the wire, often used in portable devices called amp clamps. These clamps have hinged jaws that grip a wire to measure the circuit’s current. They use the Hall Effect, which detects changes in voltage within a magnetic field. As current flows, the sensor captures this magnetic field and produces a voltage that indicates the amperage.
Shunt Meter
Shunt ammeters are used in permanent DC electrical installations and connect in series on the negative side of a circuit, allowing all current to flow through them. They also function as battery meters by reading both current and voltage, enabling calculations of power consumption (Watts = Amps x Volts).
What is a Shunt?
Installing an ammeter shunt enables continuous monitoring of your battery’s state of charge. It provides a low-resistance connection that displays the battery system’s charge in an RV.
The shunt measures amps entering and exiting the batteries via the negative lead, reflecting energy usage and remaining capacity. It connects to a display or uses Bluetooth to relay information.
What Is Ampacity?
Ampacity is the maximum current a cable can safely carry. Smaller wires have low ampacity, while larger wires have higher ratings.
When choosing wiring or cables, know their ampacity rating. Electrical component companies typically mark devices with wattage, amps, or voltage. Calculate ampacity by dividing wattage by voltage (wattage ÷ voltage = amps).
The device’s ampacity must exceed the expected current to prevent overheating and potential fires due to overloading. Remember, bigger wires equal higher ampacity.
Are AC Amps and DC Amps the Same?
AC and DC amps measure electricity flow differently:
AC Amps
Alternating current (AC) amps measure electricity that changes direction periodically, with voltage fluctuating as well.
DC Amps
Direct current (DC) amps measure electricity flowing in one direction at a constant voltage.
You need separate ammeters for AC and DC measurements.
What Is An Amp-Hour?
An amp hour (Ah) measures a battery’s charge capacity, indicating how many amps it can supply over time.
In real-world terms, a 1 amp-hour battery should provide a continuous current of 1 amp for 1 hour before discharging. It could also supply 2 amps for half an hour.
Why Do Amps Matter in Electrical System Design?
Amps are fundamental in electrical system design as they measure the current flowing through a circuit, referring to the electricity’s “flow rate.” This affects wire capacity, prevents overheating, and ensures devices function properly with the right power supply. Key points about amps include:
Overheating Risk
Excessive amperage can cause wires to overheat, risking fires or equipment damage.
Circuit Breaker Protection
Circuit breakers trip when current exceeds safe limits, preventing system damage.
Wire Gauge Selection
Choose wire gauge based on expected amps for safe electricity transmission without excessive voltage drop.
Device Compatibility
Power sources must match device amperage ratings for proper operation.
Заключение
Understanding amps is essential for electrical systems in homes, RVs, or boats. Amps quantify electrical current flow and are interconnected with volts and ohms through Ohm’s Law.
Ampacity indicates the maximum current a conductor can carry without overheating, while distinguishing between AC (alternating current) and DC (direct current) amps is vital for safe wiring practices. Utilizing tools like ammeters allows for precise measurements of current, which is crucial for maintaining efficient power systems. Recognizing the significance of amperage not only enhances safety but also optimizes performance in various electrical applications.
