| Weight | 62 kg |
|---|---|
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5.12 kWh |
| Battery Type | Li-ion Prismatic |
| Max Continuous Discharge Current | 200A (peak 400A) |
| Charging Current | 100A |
| Dimensions | 535 (555) x 205 x 375 mm |
| Charging Temperature | 0~45°C |
| Discharging Temperature | -20~55°C |
| Storage Temperature | 0~40°C |

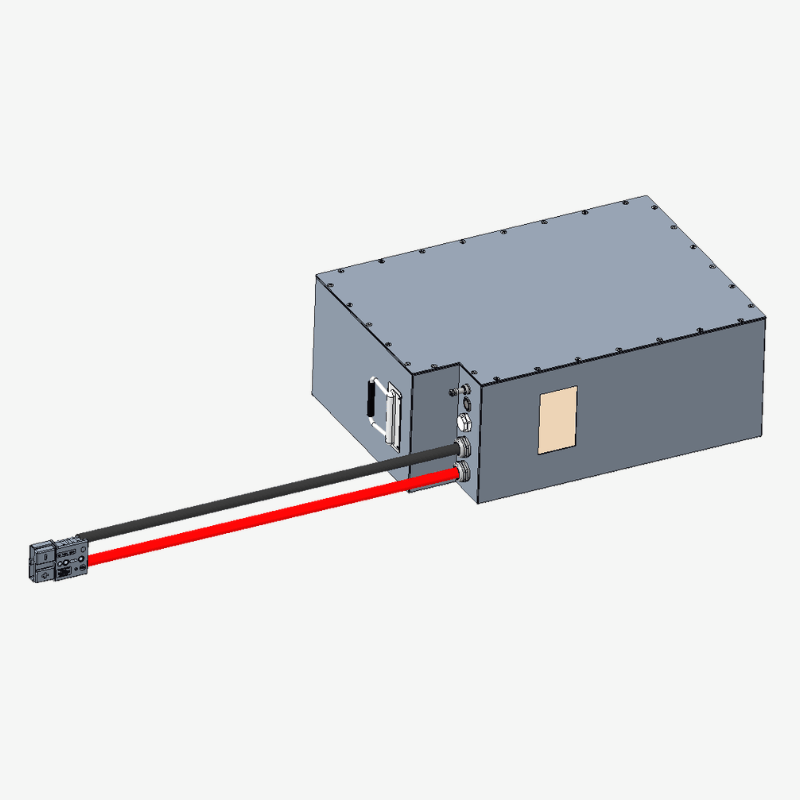

A 51.2V 100Ah sealed LiFePO4 pack for outdoor and unmanned equipment, designed around ingress protection and mechanical robustness. It carries 5.12 kWh of usable energy and delivers 200A (peak 400A) continuous — a full 2C draw, with headroom for the surge loads motive duty demands.
Charging at 100A brings it to full in roughly 1.5 hours. The operating window is -20~55°C on discharge and 0~45°C on charge. The pack measures 535 (555) x 205 x 375 mm and weighs 62 kg.
Within our 48V range this sits between the 50Ah and 105Ah builds. If your runtime target is tighter than expected once we model the duty cycle, the 105Ah configuration is the usual next step; if weight or envelope is the binding constraint, the 50Ah build is lighter.
Sealing is the design driver here: ingress rating, enclosure material, connector and gland type, all specified to the exposure. Capacity and terminals follow. Bluetooth covers on-site checks, and WiFi or 4G monitoring is available as a custom option for unattended sites.
Can the connector be sealed to the same rating?
Yes, connector and gland selection are part of the sealing design.
Can it operate unattended in the field?
Bluetooth covers on-site checks as standard. For genuinely unattended sites we can add WiFi or 4G with a cloud dashboard, but it is a custom option rather than the default.
Grade A prismatic LFP cells, generally specified with UL recognition at cell level. Every pack ships with a UN38.3 test summary and MSDS prepared for air, sea and road transport. Assembly and testing take around 7 working days. Cell supply is what sets the overall schedule: when the cells your design needs are in stock, samples ship in 12–15 working days; when they have to be sourced, allow 20–25. Tell us your target date early and we will confirm cell availability before you commit to it. Production runs 30–35 working days. There is no minimum order quantity — this is a custom design business and we quote single units, with pricing improving noticeably from 100 packs upward. LiFePO4 warranty typically runs 3–5 years, set against the discharge duty of the application; high-rate cycling shortens it.
