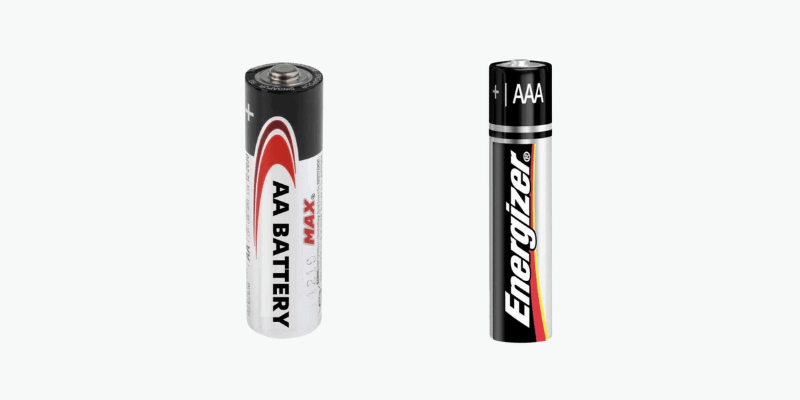

AA and AAA batteries look almost identical, but they are not interchangeable. The difference comes down to size. An AA cell is bigger, so it stores more energy and runs your devices longer.
Both cells deliver the same 1.5 volts. What changes is endurance: an AA battery holds roughly 2000 to 3000 mAh, while an AAA holds about 800 to 1200 mAh.
The full dimensions and specifications are compared in the table below.
Physical Dimensions and Industrial Form Factors: AA vs. AAA
Both AA and AAA batteries belong to the standardized family of cylindrical dry-cell batteries governed by ANSI and IEC dimensional norms (designated ANSI 15A / IEC LR6 for alkaline AA, and ANSI 24A / IEC LR03 for alkaline AAA).
The critical geometric contrast centers entirely around outer diameter and chemical reservoir volume. An AA battery measures 14.5 mm across and 50.5 mm tall, yielding an overall package volume of approximately 8.3 cubic centimeters.
In comparison, an AAA battery measures 10.5 mm across and 44.5 mm tall, yielding roughly 3.8 cubic centimeters.
Because an AA cell encloses more than double the physical volume of an AAA cell, manufacturers pack significantly more electrochemical active mass into the cylindrical housing. This structural discrepancy dictates every performance parameter encountered during hardware development, from internal impedance levels to thermal dissipation during high-discharge pulses.
Key Differences Between AA and AAA Batteries
To evaluate which cell fits your hardware design, the following engineering reference table compares the core physical and electrical parameters of standard AA and AAA batteries:
| Parameter | AA Battery | AAA Battery | Engineering Notes |
|---|---|---|---|
| Dimensions | 14.5 mm diameter, 50.5 mm length | 10.5 mm diameter, 44.5 mm length | AA has roughly double the volume |
| Nominal Voltage | 1.5V (Alkaline), 1.2V (NiMH), 3.7V (14500 Li-ion) | 1.5V (Alkaline), 1.2V (NiMH), 3.7V (10440 Li-ion) | Identical voltage per chemistry |
| Typical Capacity | 2000 to 3000 mAh (Alkaline), 2500 mAh (NiMH) | 800 to 1200 mAh (Alkaline), 1000 mAh (NiMH) | AA offers 2.5 to 3 times more runtime |
| Standard Weight | 23 grams | 11.5 grams | Weight scales with active mass |
| Common Uses | Wall clocks, high-output flashlights, motorized toys | TV remote controllers, wireless mice, medical monitors | Choose AAA when housing space is tight |
Volumetric Energy Density and Internal Active Mass
Energy storage capability in primary alkaline cells is directly proportional to the quantity of zinc powder at the anode and electrolytic manganese dioxide (EMD) at the cathode.
The substantial volume of an AA cell houses nearly three times the reactant weight of an AAA cell.
Under standard ambient temperatures, this yields between 3.0 and 4.2 watt-hours of deliverable energy for an AA alkaline cell, compared to only 1.2 to 1.6 watt-hours for an AAA alkaline cell.
High-Drain vs. Low-Drain Discharge Behavior
Internal impedance plays a decisive role when devices demand pulse currents exceeding 500 milliamperes. Standard AA alkaline batteries exhibit lower internal resistance (typically 0.15 to 0.3 ohms) compared to AAA cells (typically 0.25 to 0.5 ohms).
Under continuous 1-ampere loads, an AAA battery suffers immediate terminal voltage sag, truncating useful operational life prematurely.
Consequently, hardware engineers select AA cells for motorized tools, wireless radio transmitters, and camera flashes, while reserving AAA cells for intermittent micro-ampere telemetry loads.
Shared Electrical Characteristics and Engineering Applications
Despite their physical divergence, AA and AAA batteries share identical electrochemical principles. Both output 1.5 volts under primary alkaline formulations and 1.2 volts under rechargeable nickel-metal hydride (NiMH) chemistries.
When arranged in series strings, four AA or four AAA cells provide an identical nominal bus voltage of 6.0 volts (alkaline) or 4.8 volts (NiMH). The difference resides entirely in system operating autonomy.
When engineering consumer electronics or industrial sensing nodes, selecting between AA and AAA enclosures depends upon ergonomics and runtime targets.
Medical instrumentation such as digital thermometers, pulse oximeters, and handheld glucose meters prioritize AAA batteries because weight reduction and slim form factors outweigh continuous runtime demands.
Conversely, high-intensity emergency flashlights, commercial soap dispensers, and automated door locks rely upon AA assemblies to minimize field maintenance intervals.
Frequently Asked Questions
Can you replace AAA batteries with AA batteries using an adapter?
Electrically, both deliver 1.5 volts in alkaline chemistry. However, physical dimensions prevent direct substitution unless an external battery compartment adapter or plastic spacing sleeve is utilized. Because of diameter discrepancies, an AA cell will never physically fit into a native AAA battery housing.
Why do AA batteries deliver significantly longer runtime than AAA cells?
AA cells house approximately three times the internal chemical volume of AAA cells. This additional active mass directly translates to higher milliamp-hour capacity under identical current loads, enabling AA cells to sustain operational voltage thresholds far longer.
Are rechargeable NiMH AA and AAA cells interchangeable with primary alkaline cells?
Rechargeable NiMH cells deliver a nominal 1.2 volts, whereas alkaline cells deliver 1.5 volts. Most modern electronics tolerate this minor discrepancy without disruption because NiMH exhibits a flatter discharge curve. However, sensitive optical equipment or legacy circuitry with strict low-voltage cutoffs requires verification prior to deployment.
What safety protocols prevent leakage during extended battery storage?
To prevent potassium hydroxide leakage in alkaline cells, store batteries in climate-controlled environments between 15 and 20 degrees Celsius. Remove cells from idle hardware to avoid parasitic drain, and never mix cells of differing chemistries, brands, or residual state-of-charge levels within the same battery tray.
Can smart multi-bay chargers recharge AA and AAA cells simultaneously?
Most modern smart chargers support both sizes through spring-loaded negative contacts and independent channel monitoring. Microprocessors detect individual cell impedance and regulate current rates independently, supplying appropriate lower currents to AAA units to avoid thermal stress.
