Batteries power everything from phones to cars, making them essential in daily life. However, battery power varies. Understanding voltage is crucial when choosing between different batteries. Let’s explore what voltage is, how to measure it, and the chemical reactions involved.

What Is Battery Voltage?

Battery voltage is the difference in electrical potential between a battery’s positive and negative terminals. It represents the pressure that pushes electrons from one point to another.

You can visualize this as a compressed spring within the battery, where greater compression correlates with increased potential energy when released. This characteristic is essential for determining a battery’s power output, necessary voltage for devices, and charge state.

Another analogy is water pressure in a hose: voltage pushes water through the hose (current), measured in amps. Different electrical systems require varying voltages: 12-48 volts for low DC systems to 110V or 220V for AC residential applications. Higher voltages push more electricity through wires; think of how forceful a high-pressure water stream can be.

While lower voltages (under 50 volts) are generally safe according to OSHA standards, electric currents at higher voltages found in residential grids and power lines can be dangerous.

high voltage

What Creates Battery Voltage?

Batteries consist of an anode, cathode, electrolyte, and separator. The anode is the negative side, typically made of zinc, lithium, graphite, or platinum. The cathode is the positive end and usually contains oxidizing metals like lithium oxide or copper oxide.

Electrons cannot flow freely between the anode and cathode; however, when connected by a conductor, electrons move from the anode to the cathode, generating voltage.

what creates battery voltage

What is the Difference Between Voltage and Current?

Voltage and current are closely connected yet have distinct characteristics.

  • Voltage measures electric potential energy per unit charge, while current represents the rate of electron flow.
  • Voltage is measured in volts (V) and current in amperes (A).
  • Voltage, denoted by “V,” drives current within a circuit, while current, denoted by “I,” signifies the flow of electrons.
  • Voltage is considered independent of the circuit, whereas current is influenced by the circuit’s resistance.

voltage vs current vs resistance

How is Battery Voltage Measured?

Measuring battery voltage is essential for determining its state of charge.

The best method is to use a multimeter: attach the red probe to the positive terminal and the black probe to the negative terminal, then take the reading.

12v lithium battery voltage measuring

What Is Normal Voltage?

The normal voltage of a battery depends on its type and chemical reaction. Batteries with more favorable oxidation-reduction reactions produce higher voltages. For example, a car battery typically measures around 12.6 volts, while a AAA battery measures about 1.5 volts.

It is crucial to match the correct voltage to avoid damaging electronics or the battery.

Lead-Acid Voltages vs Lithium-Ion Battery Voltages

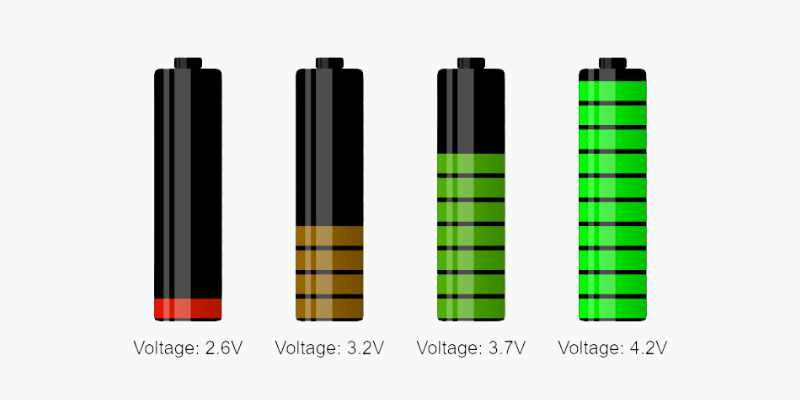

Battery voltage varies with charge level. A fully charged battery delivers higher voltage than one that is low or empty. This phenomenon, known as voltage loss, depends on the battery type.

Traditional lead-acid batteries experience greater voltage drops than lithium batteries. Lithium batteries, with their advanced technology, are more energy-dense and less affected by Peukert’s Law.

A 12-volt lead-acid battery delivers about 12.7 volts when fully charged and 11.6 volts at 20% capacity. In comparison, a lithium battery provides 13.6 volts when fully charged and 12.9 volts at 20% capacity.

12 volt lead acid battery voltage testing

Is Battery Voltage Dangerous?

According to OSHA, battery voltage is not considered dangerous until it exceeds 50 volts. The human body can generally withstand up to 50 volts of shock without harm, as the arms and legs have a resistance of at least 500 ohms. This resistance prevents lethal current from reaching the heart in most cases.

However, voltages above 50 volts can make the body a conductor, posing serious risks including burns, broken bones, hearing loss, eye injuries, cardiac arrest, and death. Even 10 milliamps through the heart can disrupt its electrical conductivity and cause fatal arrhythmias; thus all voltages over 50 volts are deemed dangerous.

Why Does Battery Voltage Matter?

Battery voltage is important because it indicates how much power a battery can supply, helping to determine the required voltage for electronics and their charge state. Without measuring battery voltage, safely using batteries would be impossible.
